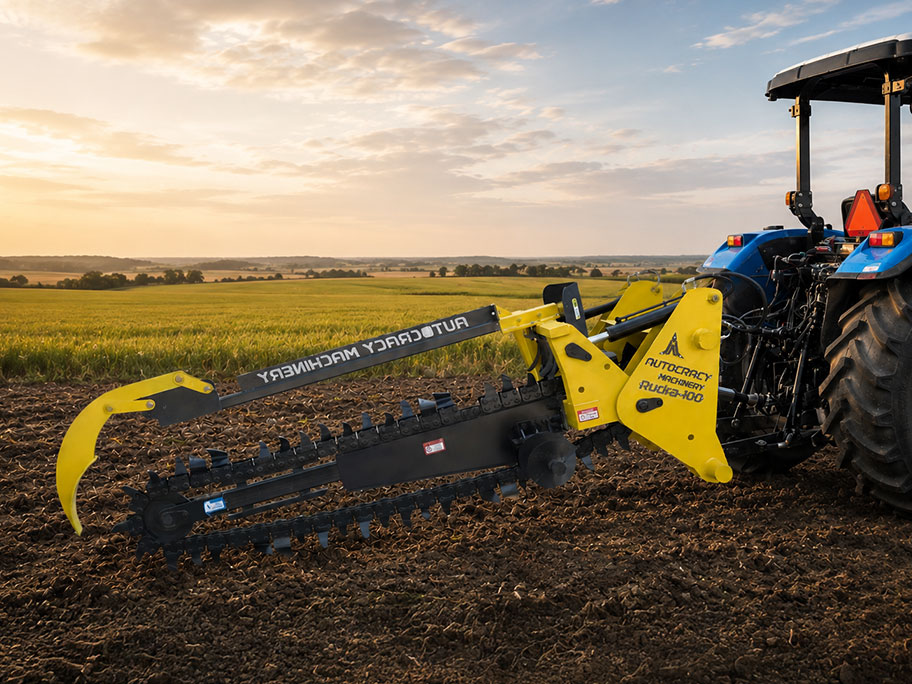

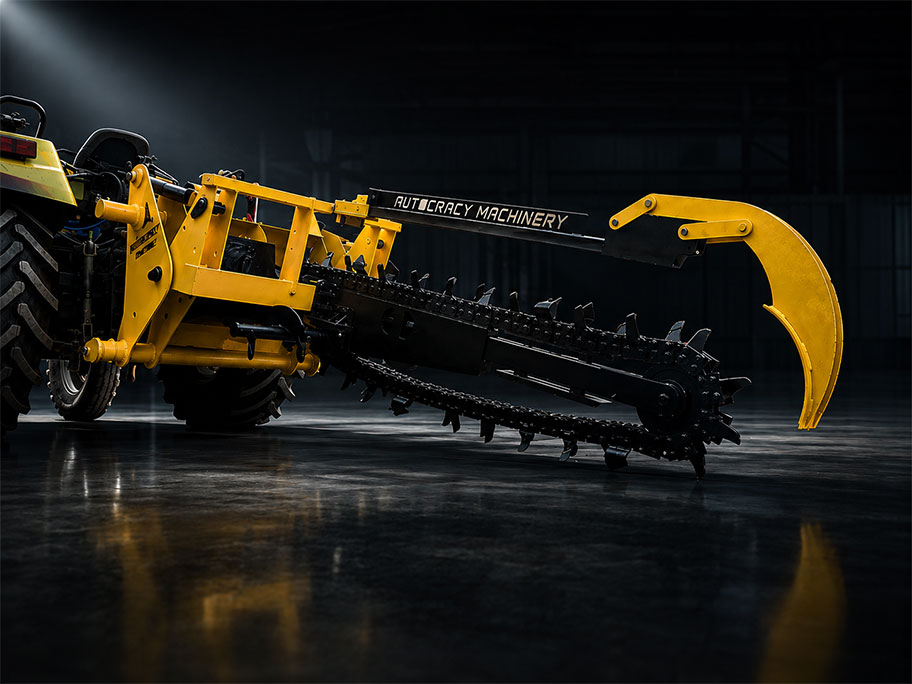

Trenching Machine | Rudra 100

The Rudra 100 is a compact tractor-mounted trencher designed for field-based infrastructure requirements including irrigation, agriculture, drainage, telecom, rural roads, and underground utility installation. Compatible with tractors above 50 HP, it is configured to deliver controlled trenching performance across farms, narrow access routes, and varying terrain conditions.

Rudra 100 supports trenching up to 1000 mm deep and offers a trench width range of 110-280 mm. The PTO / Hydraulic transmission provides efficient machine operation, while the host tractor hydraulic control valve and double-acting cylinder enable smooth movement and precise depth adjustment.

Key Features

• Maximum trenching depth: 1000 mm

• Trenching width: 110-280 mm

• Tractor compatibility: Above 50 HP

• PTO / Hydraulic transmission system

• Speed up to 280-300 m/hr in soft soil

• Hard-soil speed of 200-220 m/hr

• Fuel consumption: 5-6 L/hr

• Double-acting cylinder for trench depth control

• Operates through host vehicle hydraulic control valve

• Compact machine configuration

• Gross weight: 1200 kg

•


Applications

• Agriculture and farm utilities

• Irrigation pipeline installation

• Drainage infrastructure

• Telecom and OFC routes

• Underground utility works

• Rural road infrastructure

• Water pipeline projects

• Field infrastructure development

Technical Specifications

Support Vehicle Tractor

Trench Depth             Up to 1000 mm

Trench Width:  110-280 mm

Tractor Requirement: Above 50 HP

Transmission Type: PTO / Hydraulic

Soft Soil Trenching Speed: 280-300 m/hr

Hard Soil Trenching Speed: 200-220 m/hr

Fuel Consumption Rate: 5-6 L/hr

Overall Length: 3990 mm

Overall Width: 1420 mm

Overall Height: 1140 mm

Gross Weight: 1200 kg
