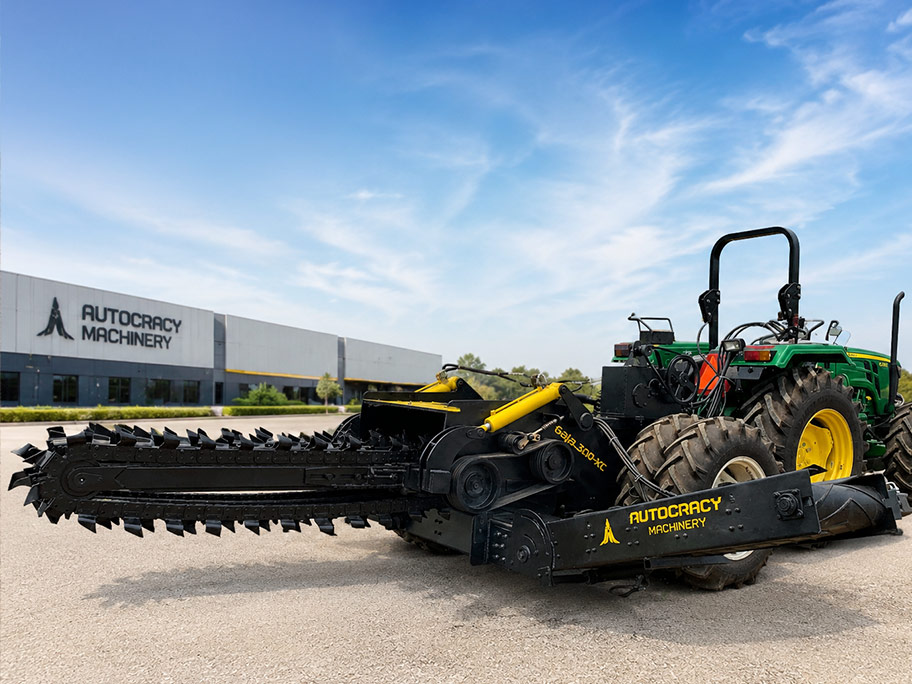

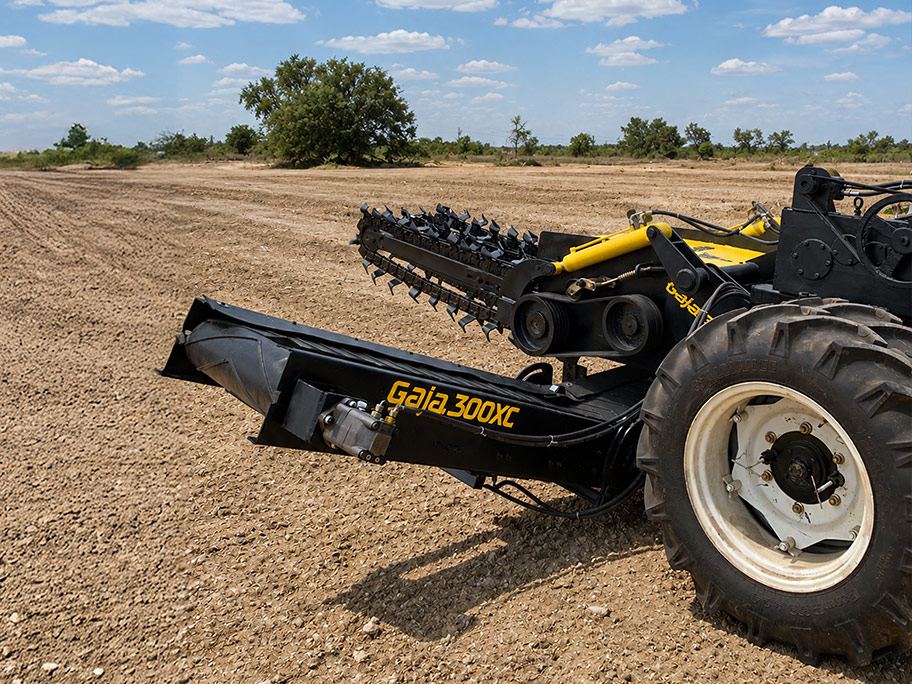

Heavy Duty Trencher | Gaja 300XC

When underground infrastructure calls for wider trench profiles and greater excavation depth, equipment capability becomes critical to project execution. The Gaja 300XC is a heavy-duty tractor-mounted trencher built for applications across renewable energy, power transmission, defence, and utility infrastructure. It can produce trenches up to 1500 mm deep and 900 mm wide while operating with tractors above 100 HP.

Features

Built for Large-Scale Trenching
Its 1200-1500 mm depth range and up to 900 mm width make it suitable for substantial underground cable, utility, and power infrastructure routes.

Dual Conveyor Arrangement
The fixed and tilting conveyors help transfer excavated material away from the trench, supporting cleaner work areas and controlled spoil placement.

High-Power Tractor Requirement
Compatibility with tractors above 100 HP provides the power base required for heavy-duty trenching applications.

Soil-Condition Based Output
The Gaja 300XC delivers up to 60 m/hr in soft soil and 30-40 m/hr in hard soil, allowing output expectations to be planned around site conditions.

PTO / Hydraulic Drive
The combined transmission system supports power delivery and controlled machine operation throughout the trenching process.

Why choose Gaja 300XC?

• Suitable for deep and wide trenching.

• Supports underground cable and utility installation.

• Built for solar and wind infrastructure development.

• Applicable to power transmission corridors.

• Suitable for defence-related underground infrastructure.

• Dual conveyor arrangement improves excavated soil management.

• Tractor-mounted design supports integration with suitable fleets.

Specifications

Support Vehicle: Tractor
Horsepower: >100 HP
Transmission Type: PTO / Hydraulic
Trench Depth: 1200-1500 mm
Trench Width: Up to 900 mm
Trenching Speed: 60 m/hr in soft soil | 30-40 m/hr in hard soil
Fuel Consumption: 9-10 L/hr during trenching
Aux Hydraulic Oil Flow: >50 LPM
Overall Length: 5300 mm
Overall Width: 3500 mm
Overall Height: 2900 mm
Gross Weight: 3450 kg
