Tractor Mounted Trencher | Mayura TO

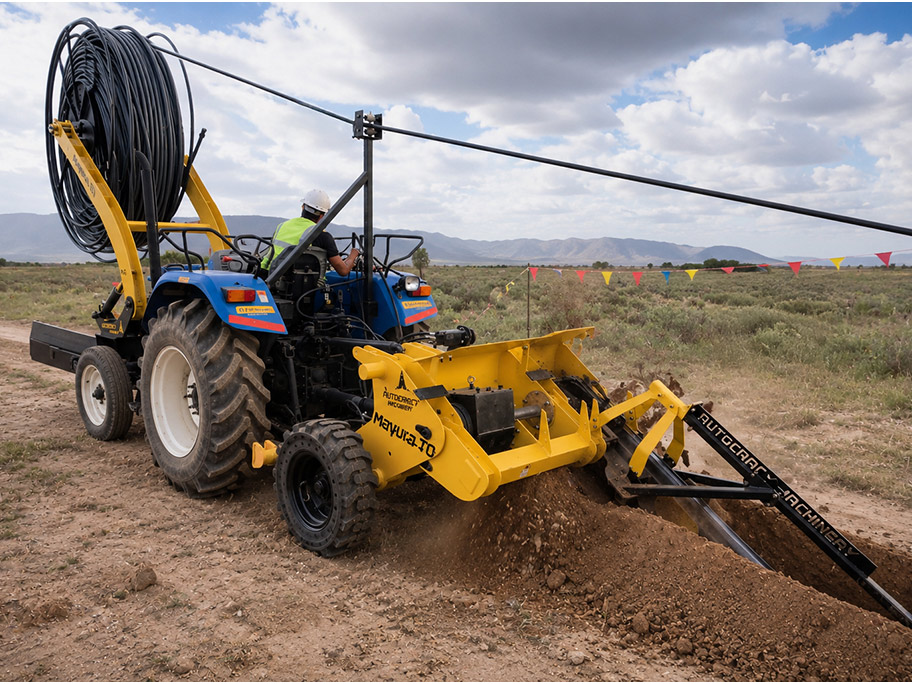

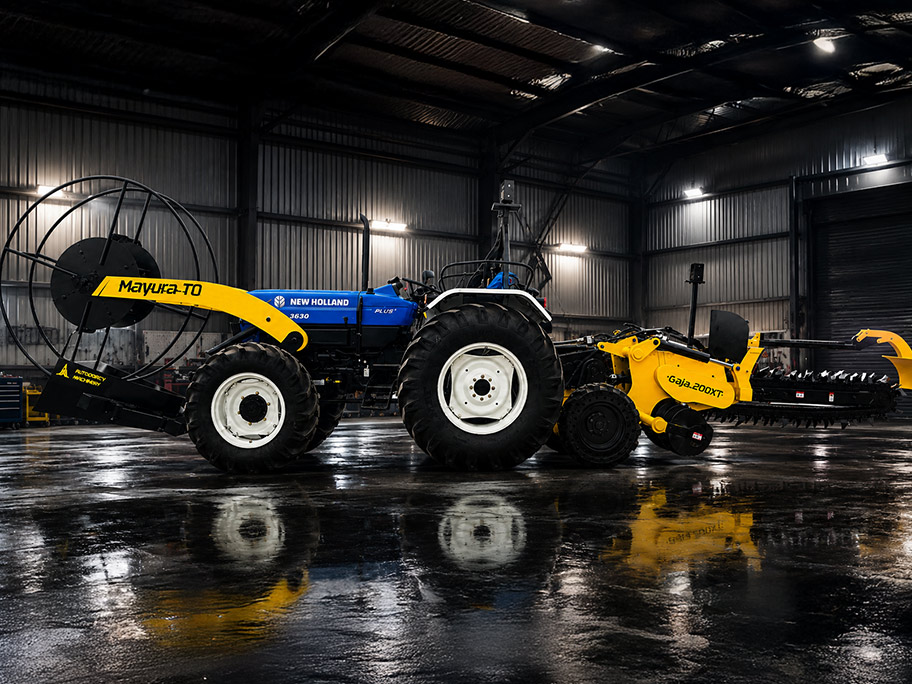

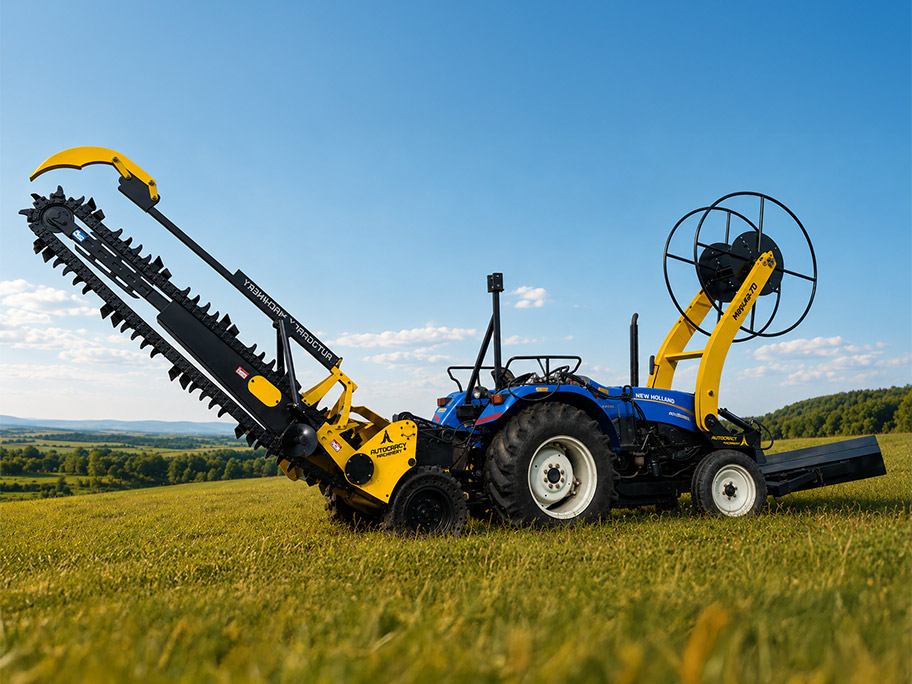

Mayura TO Tractor Mounted OFC Duct Laying Machine

The Mayura TO combines trench excavation, HDPE duct deployment, and trench closure in a single tractor-mounted configuration. Designed for tractors above 60 HP, it is intended for contractors working on OFC rollout, telecom networks, utility corridors, irrigation, drainage, and other underground infrastructure applications.

Its chain trenching system handles trench widths of 110-280 mm and depths up to 1800 mm. A front hydraulic decoiler feeds the HDPE duct directly into the trench, followed by an integrated 2-plate dozer that supports backfilling widths of up to 2500 mm.

Key Features

• One-pass trenching and duct-laying configuration

• Chain trencher for 110-280 mm trench widths

• Maximum trench depth of 1800 mm

• Tractor compatibility above 60 HP

• PTO / hydraulic drive system

• Maximum trenching speed of 300 m/hr

• Soft-soil operating speed: 150 m/hr

• Hard-soil operating speed: 90 m/hr

• Hydraulic HDPE duct deployment system

• Maximum duct roll OD: 2000 mm

• Duct diameter range: 30-60 mm

• Two-plate integrated backfilling system

• Filling width from 1000 to 2500 mm

Applications

• OFC network deployment

• Fibre optic duct installation

• Telecom and communication projects

• Underground cable installation

• Irrigation infrastructure

• Drainage systems

• Pipeline installation

• Solar and wind projects

• Utility corridor development

Technical Specifications

Support Vehicle Tractor

Tractor Requirement >60 HP

Transmission PTO / Hydraulic

Trenching Depth Up to 1800 mm

Trenching Width: 110-280 mm

Maximum Trenching Speed: 300 m/hr

Soft Soil Speed: 150 m/hr

Hard Soil Speed: 90 m/hr

Fuel Consumption: 5-6 L/hr

Duct Diameter: 30-60 mm

Duct Roll ID:           850 mm adjustable

Duct Roll Width: 600 mm

Maximum Duct Roll OD: 2000 mm

Backfilling Depth: Up to 2000 mm

Filling Width:           1000-2500 mm

Overall Length: 10500 mm

Overall Width:             3200 mm

Overall Height: 4500 mm
