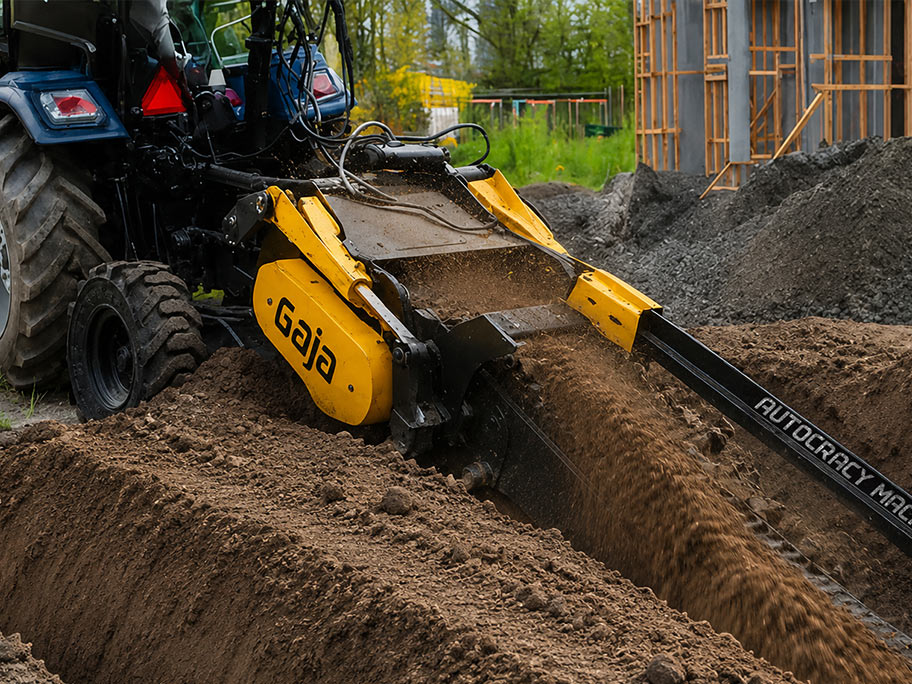

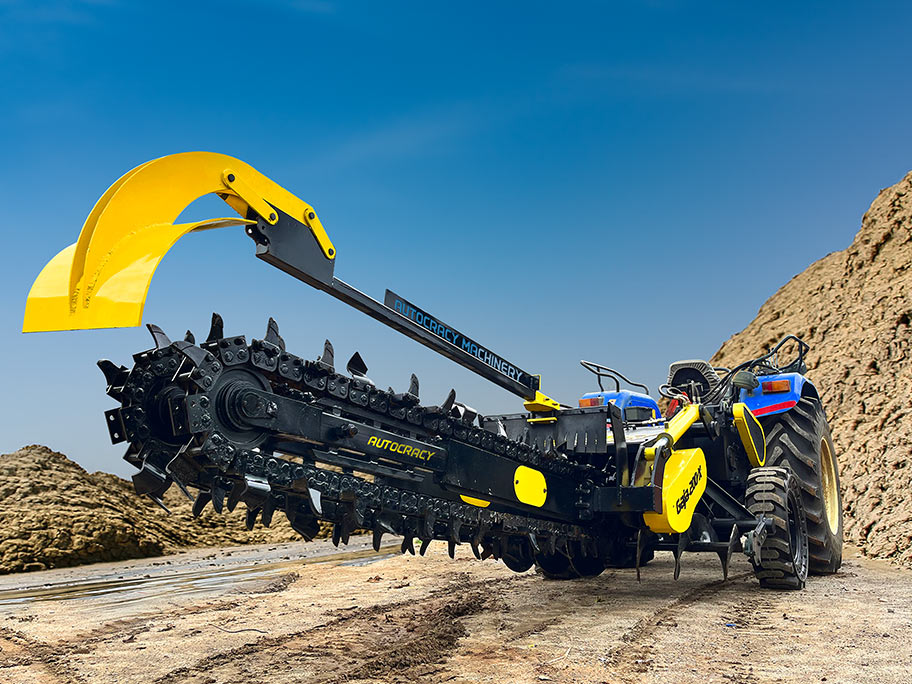

Tractor Mounted Trencher | Gaja 200 XT

The Gaja 200XT is a tractor-mounted trencher designed for projects requiring deep, wide, and consistent trenching across utility and infrastructure routes. With trenching capability up to 1500 mm deep and 600 mm wide, it is suited for OFC cable installation, water pipelines, irrigation networks, underground utilities, solar, wind, and power transmission projects. Its PTO / hydraulic transmission and compatibility with tractors above 75 HP support dependable field deployment across varied soil conditions.

Features

Deep & Wide Trenching
Provides trench depths of 1200-1500 mm and widths up to 600 mm, supporting demanding underground utility requirements.

Productive Trenching Performance
Achieves speeds of up to 150 m/hr in soft soil and 100 m/hr in hard soil for efficient field execution.

Heavy-Duty Tractor Compatibility
Designed for tractors above 75 HP, enabling integration with suitable tractor fleets for infrastructure projects.

PTO / Hydraulic Power Transmission
Combines PTO and hydraulic power delivery for smooth and controlled trenching performance.

Stable Hydraulic Operation
Auxiliary hydraulic oil flow above 25 LPM supports reliable hydraulic operation during trenching.

Why choose Gaja 200XT?

• Handles deep trenching requirements for OFC, pipelines, and underground utilities.

• Supports solar, wind, and power transmission corridor development.

• Provides consistent trench profiles up to 600 mm wide.

• Integrates with existing tractor-based project fleets.

• Suitable for demanding field conditions across infrastructure projects.

Specifications

Support Vehicle: Tractor
Horsepower: >75 HP
Transmission Type: PTO / Hydraulic
Trench Depth: 1200-1500 mm
Trench Width: Up to 600 mm
Trenching Speed: 150 m/hr in soft soil | 100 m/hr in hard soil
Fuel Consumption: 7-8 L/hr during trenching
Aux Hydraulic Oil Flow: >25 LPM
Overall Length: 5100 mm
Overall Width: 2621 mm
Overall Height: 1300 mm
Gross Weight: 3000 kg
