Tractor Attachment Dozer 2 Blade

Price 101.0 INR/ pieces

Get a Price/Quote

MOQ : 1 pieces

Tractor Attachment Dozer 2 Blade Specification

Accessories Type
Dozer 2 Blade

Control System
Hydraulic Control System

Features
Dual hydraulic blades, adjustable blade width, hydraulic operation, soil distribution, trench backfilling

Accuracy
High Improved Operational Accuracy mg

Power Source
Tractor

Machine Type
Tractor Attachment

Technology
Hydraulic

Usage
Backfilling, land leveling, grading, soil management and trench restoration

Type
Double Blade Dozer Attachment

Height
1220 Millimeter (mm)

Weight
700 Kilograms (kg)

Color
Black

Function
Trench backfilling, land leveling, grading and soil spreading

Length
2700 Millimeter (mm)

Width
1590 Millimeter (mm)

Application
Agriculture, construction, irrigation, drainage, utility corridors and road maintenance

About Tractor Attachment Dozer 2 Blade

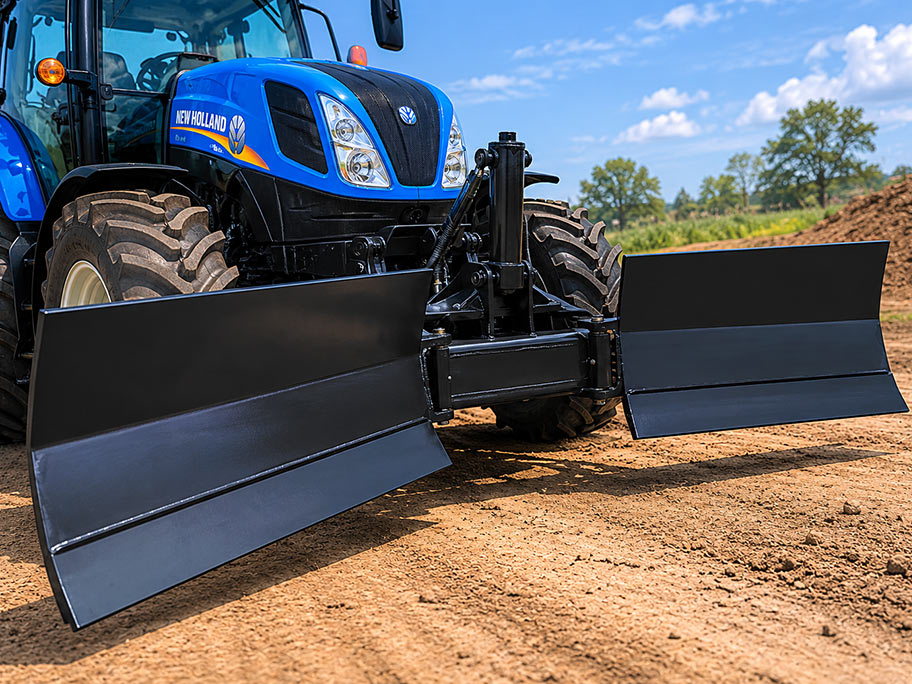

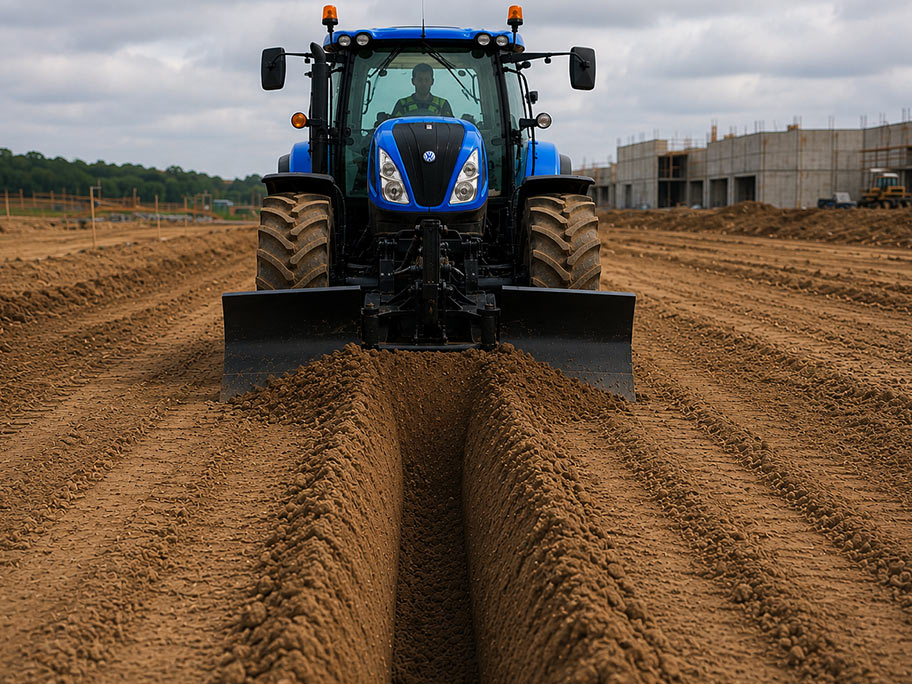

Dozer 2 Blade Tractor Mounted Backfilling Attachment

Trench restoration and soil redistribution require controlled backfilling and grading equipment that can work efficiently across changing site conditions. The Dozer 2 Blade is a tractor-mounted hydraulic attachment developed for trench backfilling, soil leveling, surface grading, and ground preparation in infrastructure, agricultural, construction, and utility projects.

Its dual-blade arrangement provides adjustable filling widths for different trench dimensions, while the hydraulic operating system enables controlled blade movement during backfilling and grading. Designed for 4090 HP tractors, the Dozer 2 Blade can be integrated with existing tractor fleets for mobile and flexible site operations.

Key Features

Dual-Blade Configuration: Two adjustable blades support efficient soil movement and trench restoration.
Adjustable Filling Width: Blade width can be varied from 1000 mm to 2500 mm for different trench sizes.
Deep Backfilling Capability: Supports trench backfilling applications up to 2000 mm deep.
4090 HP Tractor Compatibility: Designed for use with commonly available tractor platforms.
Fully Hydraulic Operation: Hydraulic controls provide smooth and controlled blade movement.
Soil Condition Versatility: Suitable for soft, medium, and semi-hard soil conditions.
Trench Restoration: Supports closing and restoring excavated areas after underground utility installation.
Surface Grading: Enables soil spreading, leveling, and preparation of disturbed ground.
Compact Tractor-Mounted Design: Allows operation across infrastructure corridors, agricultural fields, and construction areas.
Mobile Working: Uses the tractor for movement between different work locations.

Applications

Underground utility trench backfilling
OFC and telecom trench restoration
Cable trench backfilling
Pipeline trench restoration
Solar cable trench restoration
Drainage trench backfilling
Agricultural land leveling
Irrigation channel restoration
Soil spreading
Farm road preparation
Road shoulder preparation
Construction site grading
Utility corridor restoration
Excavation area restoration
Rural infrastructure development

Technical Specifications

Parameter	Specification
Product	Dozer 2 Blade
Support Vehicle	Tractor
Tractor Power Requirement	40-90 HP
Maximum Backfilling Depth	2000 mm
Maximum Blade Filling Width	2500 mm
Minimum Blade Filling Width	1000 mm
Overall Length	2700 mm
Overall Width	1590 mm
Overall Height	1220 mm
Working Speed	25 km/h
Ground Clearance	150200 mm
Blade Configuration	Dual Blade
Operation	Fully Hydraulic
Soil Compatibility	Soft, Medium, Semi-Hard
