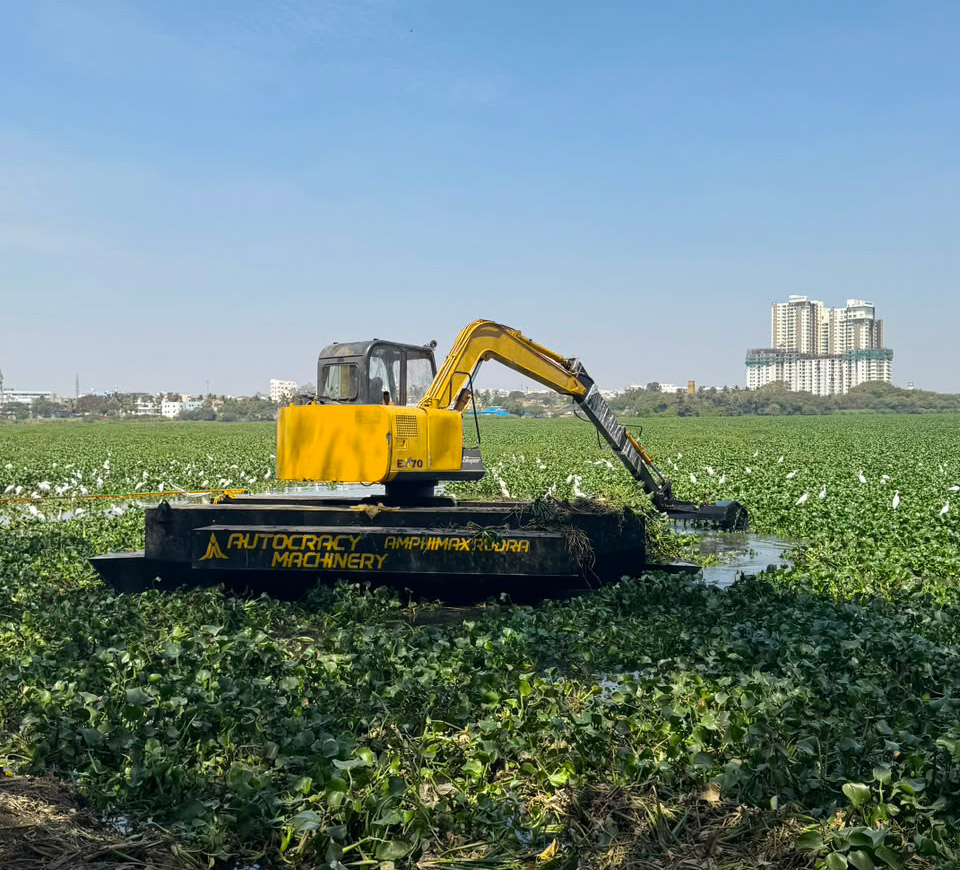

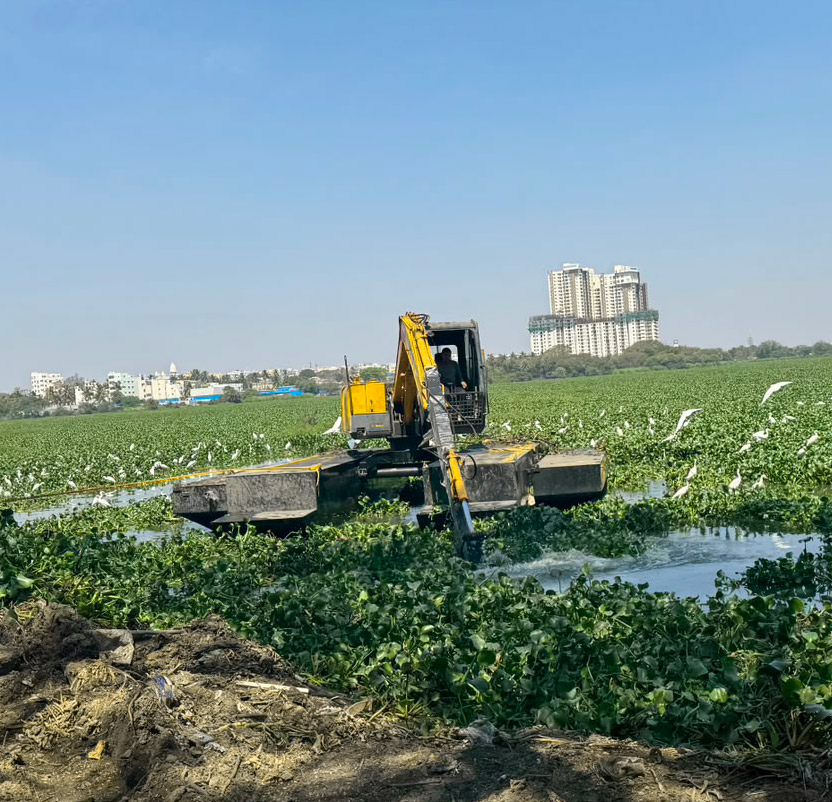

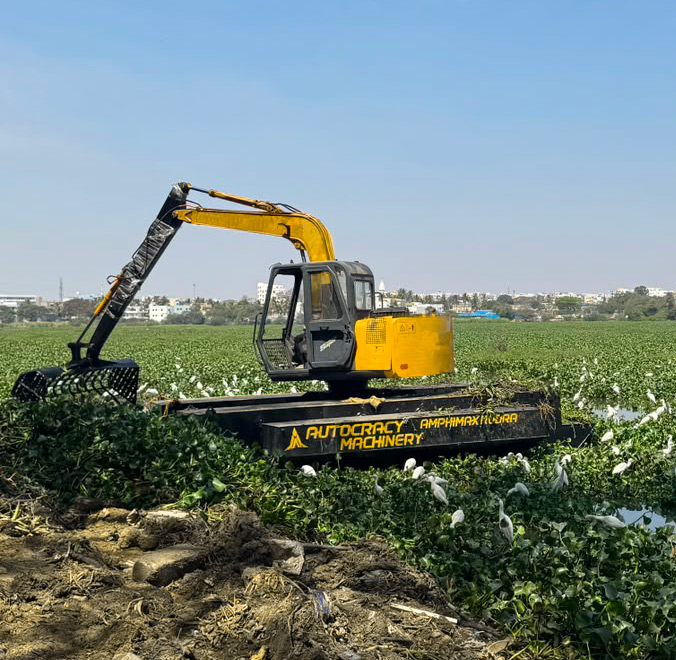

Pontoon Excavator | Rudra Amphimax 100EP

The Rudra Amphimax 100EP is an amphibious excavator developed for excavation and maintenance work across waterlogged, marshy, and soft-ground environments. Its amphibious undercarriage and high-flotation pontoons provide stability while operating in aquatic and low-bearing-capacity areas.

Designed for 610 ton excavators, the machine combines amphibious track propulsion, marine-grade steel pontoons, and a reinforced long-reach structure. It offers a maximum digging depth of 3.8 m and supports multiple attachments for dredging, weed removal, excavation, and material handling applications.

Key Features

• Suitable for 610 Ton excavators

• Digging depth up to 3.8 m

• 0.26 m bucket capacity

• 4050 kW engine power

• Hydraulic flow of 120180 L/min

• High-flotation pontoons

• Amphibious track propulsion system

• Marine-grade anti-corrosion coating

• Reinforced boom and arm

• Sealed hydraulic system

• ROPS/FOPS protected operator cabin

• Optional quick coupler and GPS/telematics

Applications

The Rudra Amphimax 100EP can be used for:

• Dredging operations

• Weed harvesting

• River and canal maintenance

• Marshland excavation

• Waterlogged construction

• Soft-ground excavation

• Aquatic material handling

• Waterbody maintenance

Technical Specifications

Parameter Specification

Operating Weight 6-10 Ton

Overall Length 9.25 m

Overall Width 3.39-4.19 m

Overall Height 3.65 m

Maximum Digging Depth 3.8 m

Bucket Capacity 0.26 m

Boom Length 4.5-5.5 m

Arm Length 3 m

Engine Power 40-50 kW

Hydraulic Flow 120-180 L/min

Hydraulic Pressure 280-320 bar

Land Travel Speed 2-4 km/h

Water Travel Speed 1-2 km/h

Buoyancy Capacity 10 Ton

Fuel Tank Capacity 130 L
