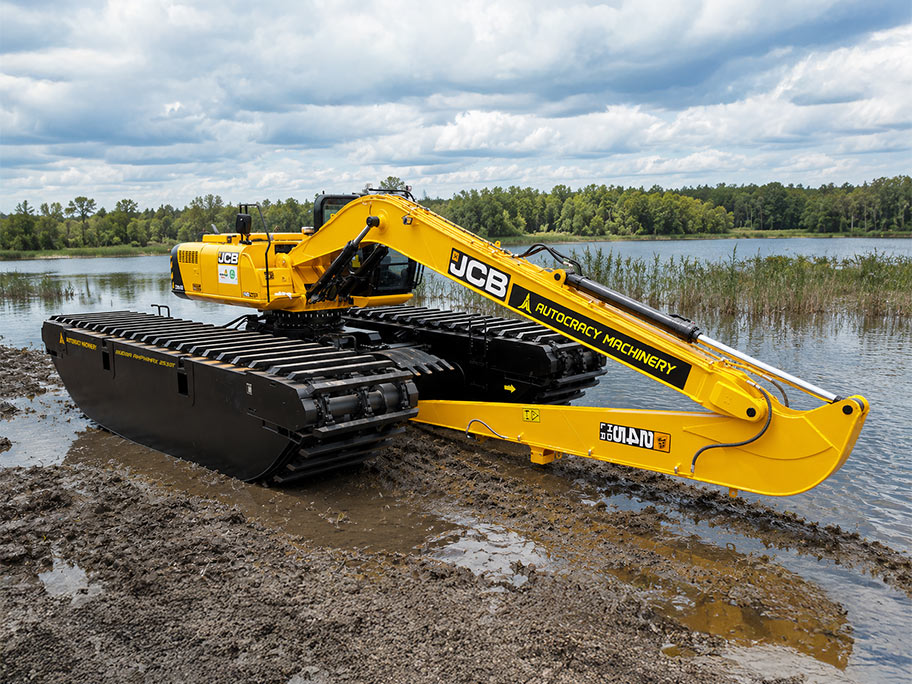

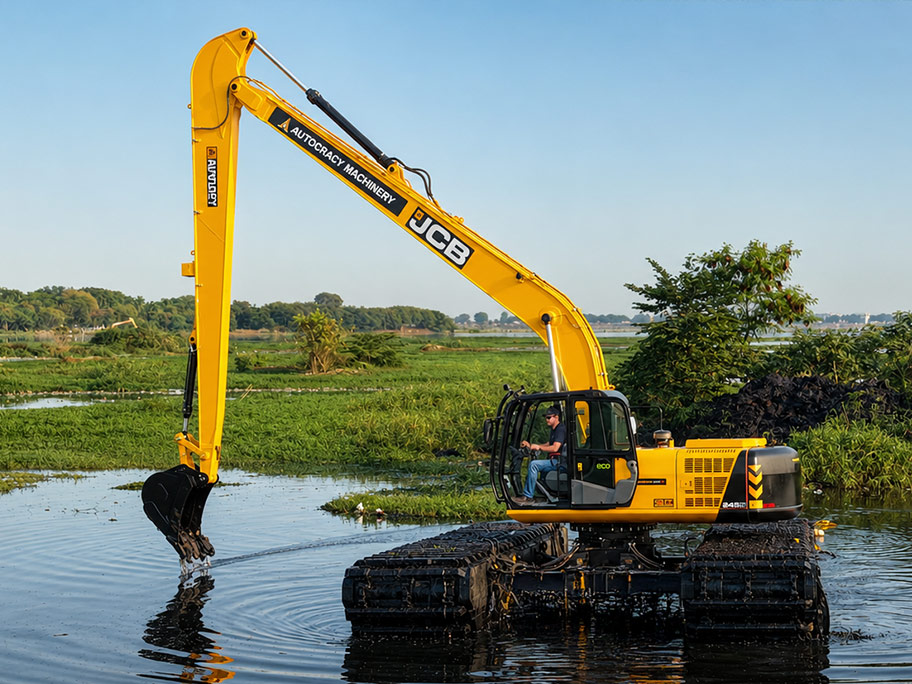

Heavy Duty Amphibious Excavator | Rudra Amphimax 250EX

The Rudra Amphimax 250EX is engineered for excavation and dredging operations where conventional excavators face difficult access conditions. Designed around the 21-25 ton excavator class, it uses high-flotation pontoons and amphibious tracks to work across marshes, waterlogged ground, soft soil, and shallow aquatic environments.

With a 9.4 m maximum digging depth, reinforced long-reach boom and arm, and multi-attachment capability, the Amphimax 250EX supports demanding excavation, dredging, weed removal, and coastal protection operations. Its marine-grade construction and corrosion protection are designed for extended operation in wet environments.

Key Features

• 2125 ton excavator operating class

• Digging depth up to 9.4 m

• Working radius of 5.20-6.64 m

• Dumping height up to 11.4 m

• 0.65 m bucket capacity

• 110-140 kW engine power

• Hydraulic flow of 320-380 L/min

• Hydraulic pressure of 320-350 bar

• High-flotation amphibious pontoons

• Wide amphibious track configuration

• Reinforced long-reach structure

• Sealed hydraulic system

• Marine-grade anti-corrosion protection

• Amphibious track propulsion

• ROPS/FOPS operator cabin

• Multiple attachment support

• Optional GPS/telematics

• Optional quick coupler

Applications

• Dredging and desilting

• Wetland construction

• Coastal protection projects

• Reservoir excavation

• Canal maintenance

• Marshland excavation

• Aquatic weed harvesting

• Shoreline development

• Waterlogged-area construction

• Environmental and water-management projects

Technical Specifications

Excavator Class: 21-25 ton
Maximum Digging Depth: 9.4 m
Machine Length: 14.41 m
Machine Width: 5.23-6.67 m
Machine Height: 4.12 m
Pontoon Length: 9.60 m
Pontoon Width: 1.92 m
Pontoon Height: 2.03 m
Ground Clearance: 1.29 m
Working Radius: 5.20-6.64 m
Dumping Height: 11.4 m
Bucket Capacity: 0.65 m
Boom Length: 8.5-9.0 m
Arm Length: 9.40 m
Engine Power: 110-140 kW
Hydraulic Flow: 320-380 L/min
Hydraulic Pressure: 320-350 bar
Fuel Tank Capacity: 350-400 L
Fuel Consumption: 9-13 L/hr
Land Travel Speed: 2-4 km/h
Water Travel Speed: 1-2 km/h
Swing Speed: 10-12 rpm
Counterweight: 4.0-4.5 ton
Attachment Options: Bucket, Weed Bucket, Rake, Grab, Clamshell
