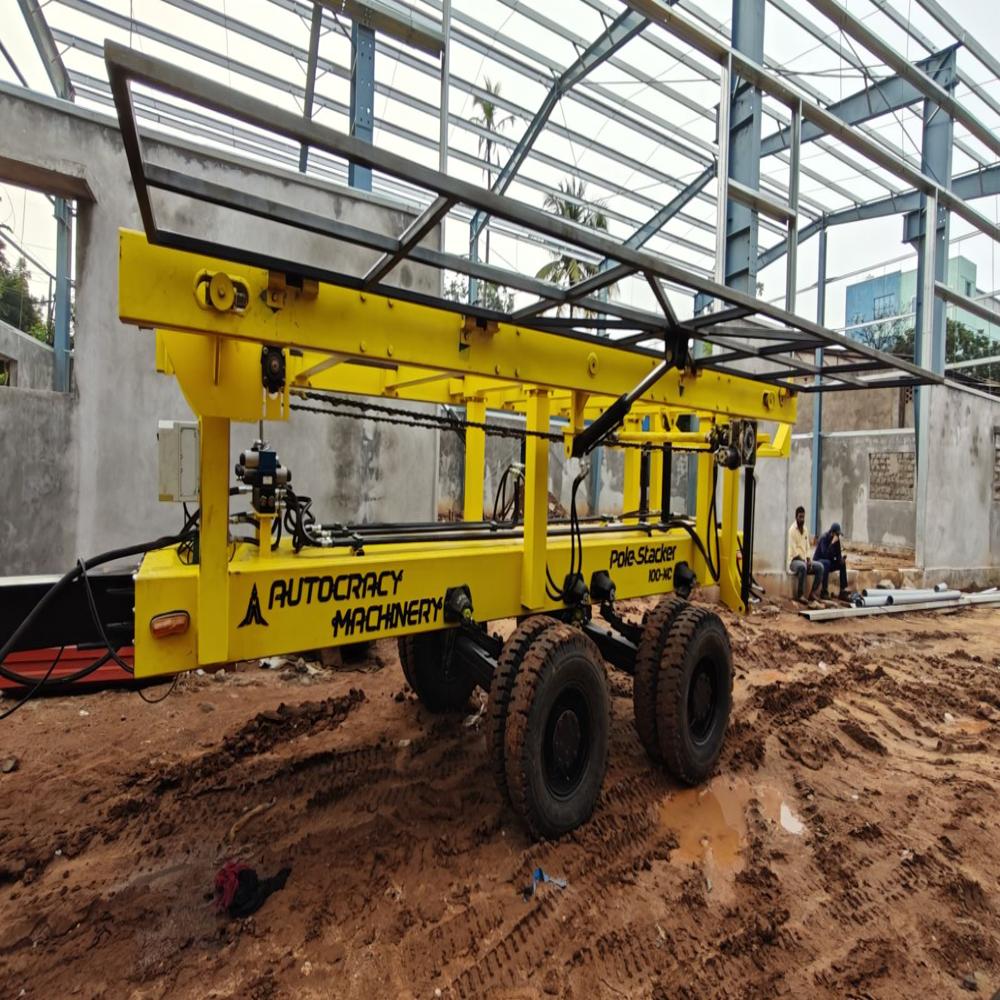

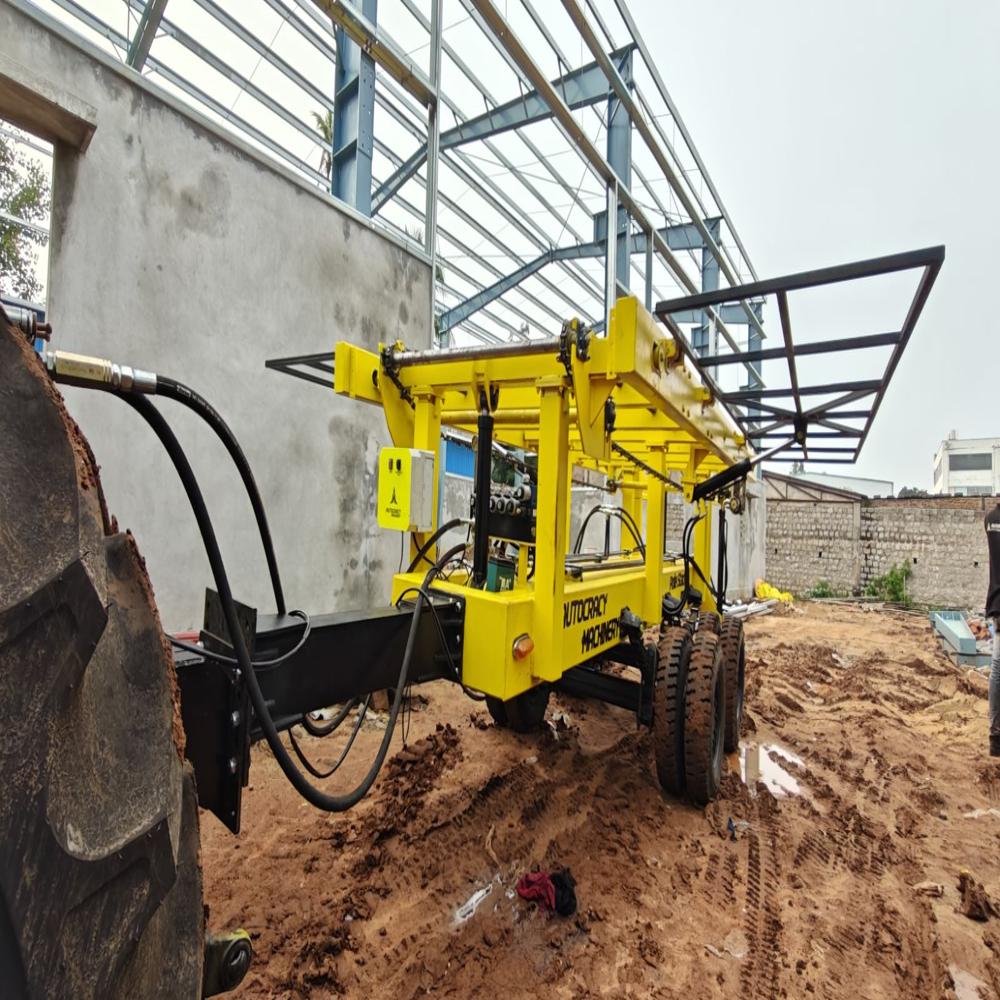

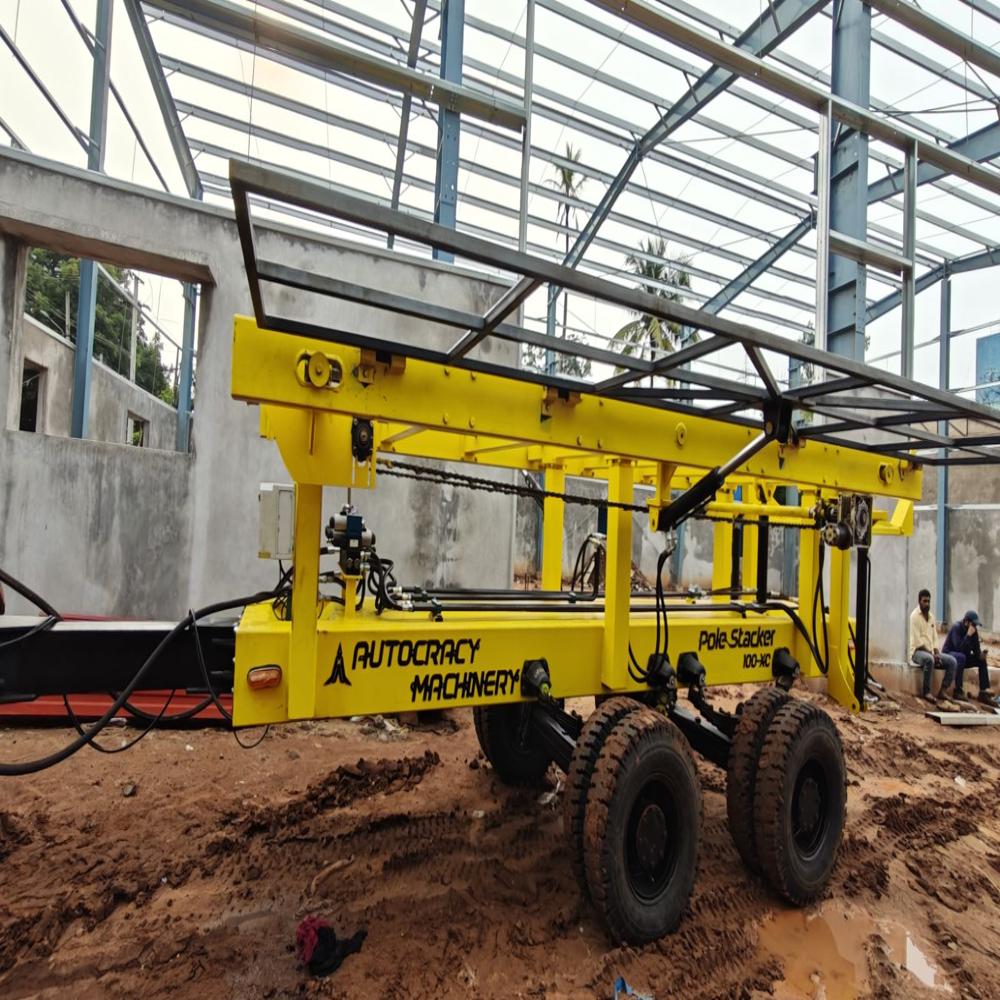

Pole Stacker 100XC for Solar Material Handling

Moving long torque tubes and structural members across solar project sites requires equipment that can manage both the load and the length of the material. The Pole Stacker 100XC is a tractor-mounted handling system developed for lifting, transporting, stacking, and positioning poles, torque tubes, and structural members.

Its automatic chain conveyor supports controlled material transfer, while the adjustable fork arrangement accommodates different profiles and sizes. Hydraulic remote operation with a range of up to 100 m provides controlled handling, while the heavy-duty suspension and 300 mm ground clearance support movement across uneven solar project terrain.

Key Features

• Automatic Chain Conveyor: Provides continuous and uniform transfer of torque tubes during handling and stacking.

• Remote Hydraulic Control: Enables operation from distances of up to 100 m for controlled material positioning.

• Multi-Profile Compatibility: Handles round, square, rectangular, and octagonal torque tubes and poles.

• Adjustable Forks: Fork adjustment range of 16002300 mm accommodates different material configurations.

• 10 MT Loading Capacity: Supports heavy-duty handling of solar structural members.

• Long Pipe Handling: Designed to handle pipes and structural members measuring 811 m.

• Heavy-Duty Suspension: Leaf spring suspension supports transportation across uneven terrain.

• High Ground Clearance: 300 mm clearance assists movement across solar field conditions.

• Tractor Compatibility: Designed for tractors above 90 HP.

• Heavy-Duty Handling: Supports lifting, transportation, stacking, and positioning operations.

Applications

• Solar infrastructure projects

• Solar farm material handling

• Torque tube transportation

• Torque tube stacking

• Torque tube positioning

• Solar mounting structure installation

• Pole handling and positioning

• Structural member distribution

• Long structural member transportation

• Solar project site material movement

Technical Specifications
