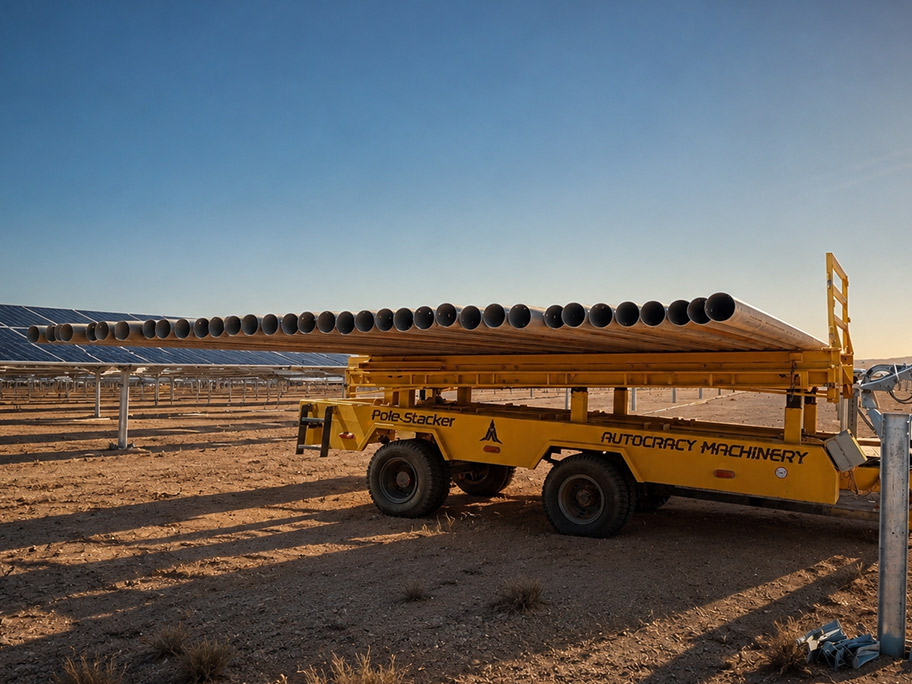

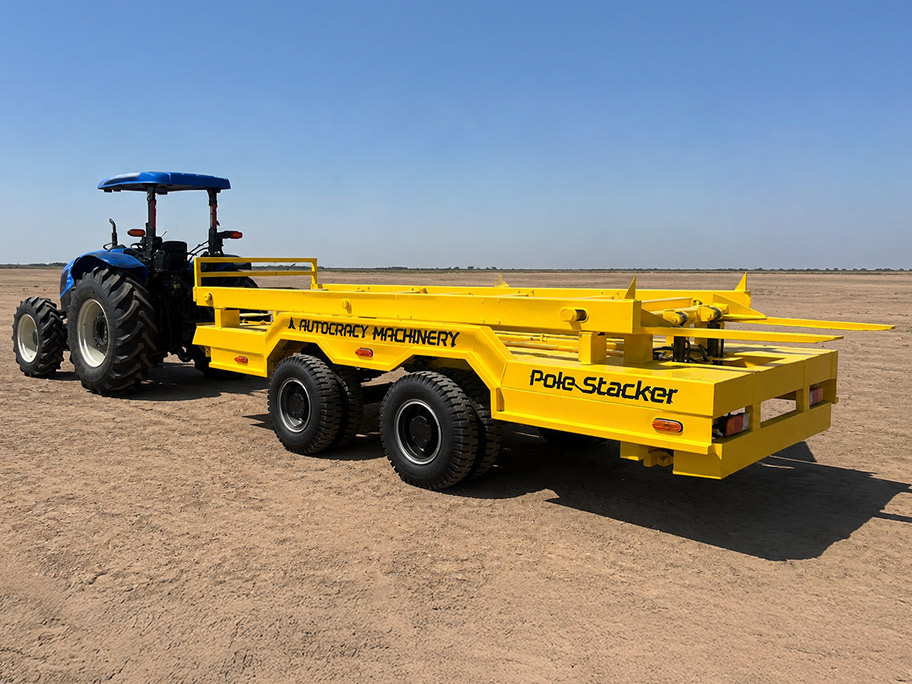

Pole Stacker 100X Tractor Mounted Material Handling Equipment

Handling long poles, torque tubes, and structural members across large solar and infrastructure sites requires equipment that can move and position oversized components safely and efficiently. The Pole Stacker 100X is a heavy-duty tractor-mounted material handling system designed for lifting, transporting, stacking, positioning, and unloading long structural components during solar plant and infrastructure development.

Designed for tractors above 90 HP, the Pole Stacker 100X can handle loads up to 10 MT and accommodate pole and torque tube lengths from 8-11 m. Its adjustable fork system supports different structural profiles, while hydraulic remote operation provides control from distances of up to 100 m for material positioning and site handling activities.

Key Features

• 10 MT Loading Capacity: Designed to lift and transport heavy poles, torque tubes, and structural members.

• Long-Pole Handling: Supports material lengths from 8-11 m for large solar installation projects.

• Adjustable Fork System: Fork adjustment from 1600-2300 mm accommodates different pole and torque tube profiles.

• Multi-Profile Handling: Suitable for round, square, rectangular, and octagonal structural sections.

• Hydraulic Remote Operation: Enables hydraulic operation from up to 100 m for controlled material positioning.

• Heavy-Duty Suspension: Leaf spring suspension helps absorb shocks during movement over uneven terrain.

• Load Stabilization Stoppers: Rugged stoppers help secure materials during lifting, transportation, and unloading.

• High Ground Clearance: 300 mm clearance supports movement across uneven solar field terrain.

• 90+ HP Tractor Compatibility: Designed for integration with high-power tractor platforms.

• Tractor-Mounted Configuration: Allows existing tractor fleets to be utilised for heavy-duty material handling.

• Heavy-Duty Forks: 1.2 m fork length supports handling of long structural components.

• Rugged Construction: Built for repeated material handling operations across demanding project environments.

Applications

• Solar power plant construction

• Torque tube handling

• Solar mounting structure installation

• Structural pole transportation

• Solar field material movement

• Solar EPC operations

• Infrastructure development

• Utility structure handling

• Long-pole stacking

• Structural member positioning

• Construction material handling

• Large project-site logistics

Technical Specifications
