Dredger Equipment | Varuna ATX

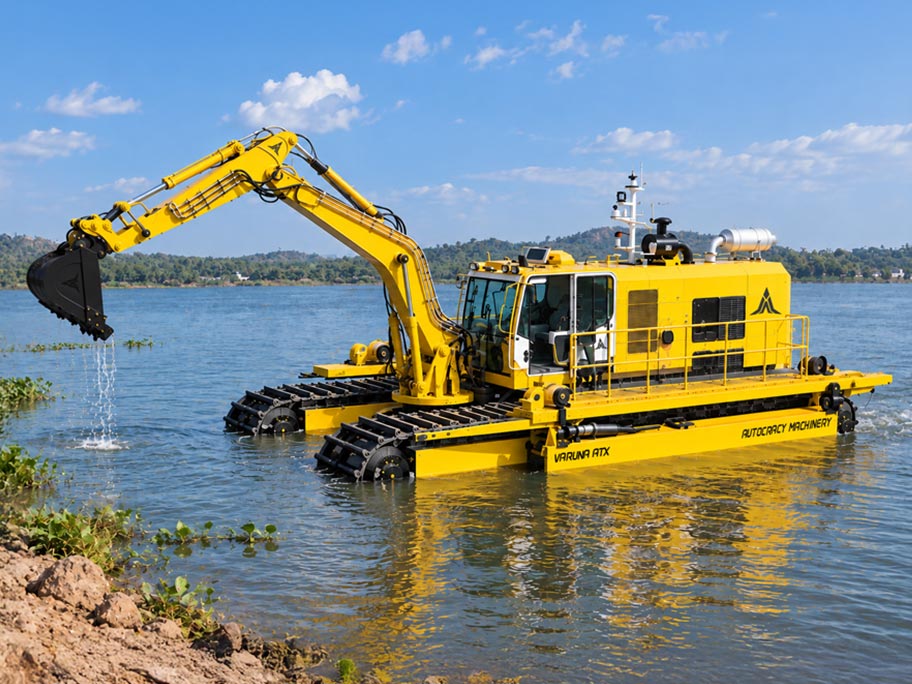

The Varuna ATX is an amphibious multi-function dredger designed to operate across land, shallow water, marshy terrain, and waterbody environments. Its buoyancy tank and crawler-based configuration allow the machine to move on land while also providing a stable platform for operations in water.

The dredger supports multiple interchangeable working units, including an excavating bucket, dredge pump, water weed cutter, collecting rake, and T-type cutter. These attachments allow the Varuna ATX to perform excavation, dredging, mud suction and discharge, aquatic weed harvesting, and floating garbage cleaning with a single amphibious platform.

Key Features

• Amphibious Configuration: Combines buoyancy tanks and crawler mobility for land and water operations.

• Multi-Function Operation: Supports excavation, dredging, weed harvesting, and aquatic waste cleaning.

• Interchangeable Working Units: Can be equipped with different attachments according to the application.

• Excavating Bucket: Provides a 0.6 m bucket capacity for excavation and material handling.

• Dredge Pump: Delivers a pump flow of 500-750 m/hr for sediment and slurry handling.

• Water Weed Cutter: Enables cutting of aquatic vegetation during waterbody maintenance.

• Collecting Rake: Supports collection and removal of weeds and floating waste.

• T-Type Cutter: Provides an additional cutting arrangement for aquatic vegetation and waterbody cleaning.

• Deep Dredging Capability: Designed for dredging depths of 6-8 m.

• Long-Distance Discharge: Supports material discharge over distances of 1000-1500 m.

• Heavy-Duty Structure: Q355 material provides a robust structural platform.

• Hydraulic System: Equipped with a Rexroth hydraulic system for operating working units.

• Engine Options: Available with Cummins, Weichai, or Caterpillar engine configurations.
  Applications

• River and lake dredging

• Marsh and wetland excavation

• Shallow-water dredging

• Waterway deepening

• Sediment and mud removal

• Mud suction and discharge

• Aquatic weed harvesting

• Water hyacinth removal

• Floating garbage cleaning

• Canal maintenance

• Reservoir desilting

• Wetland restoration

• Waterbody rehabilitation

• Multi-purpose aquatic maintenance

Technical Specifications
