Tractor Mounted Trenching Machine | Mayura TW

Infrastructure routes do not always encounter the same ground conditions. Soil, hard rock, concrete, and obstacles can appear along a single trenching route. The Mayura TW is engineered to address these changing conditions by combining four essential operations on one tractor platform.

Designed for tractors above 90 HP, the Mayura TW integrates a chain trencher, back hoe, hydraulic breaker and 4-way dozer for coordinated trenching and utility installation work.

Technical Highlights

• Maximum trench depth: 1800 mm

• Trench width range: 110-900 mm

• Maximum trenching speed: 300 m/hr

• Soft soil example: 300 m/hr

• Hard soil example: 200 m/hr

• PTO / Hydraulic transmission

• Fuel consumption: 5-6 liters/hr

• Back hoe bucket: 0.12-0.15 m

• Lifting capacity: 1500 kg

• Lift height: 2.0-3.5 m

• Hydraulic breaker chisel: 45 mm

• Breaker working speed: 250-600 BPM

• Dozer blade width: 2400 mm

• Gross weight: 8100 kg

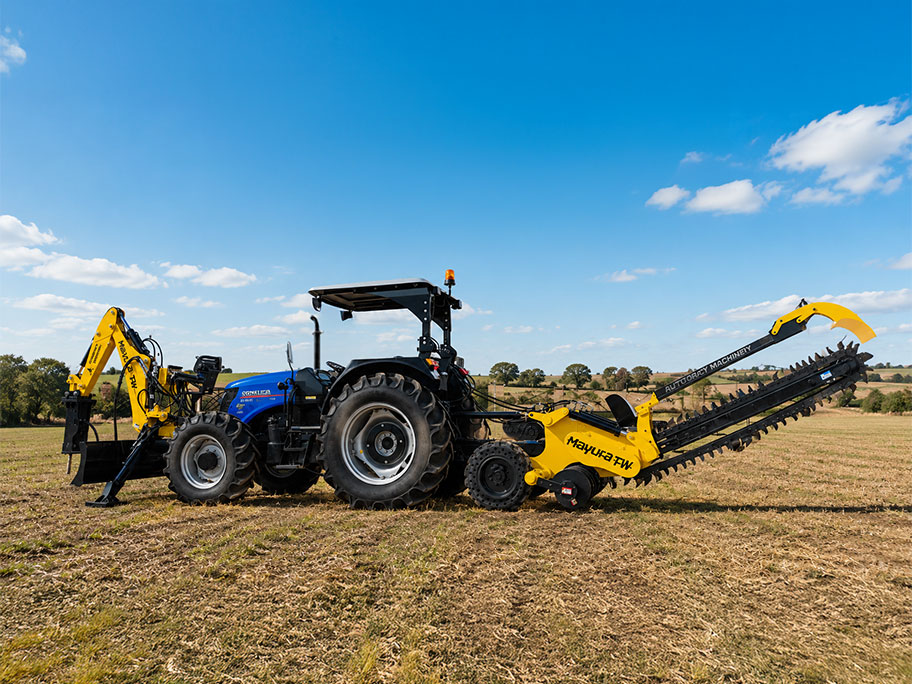

Four Functions. One Machine.

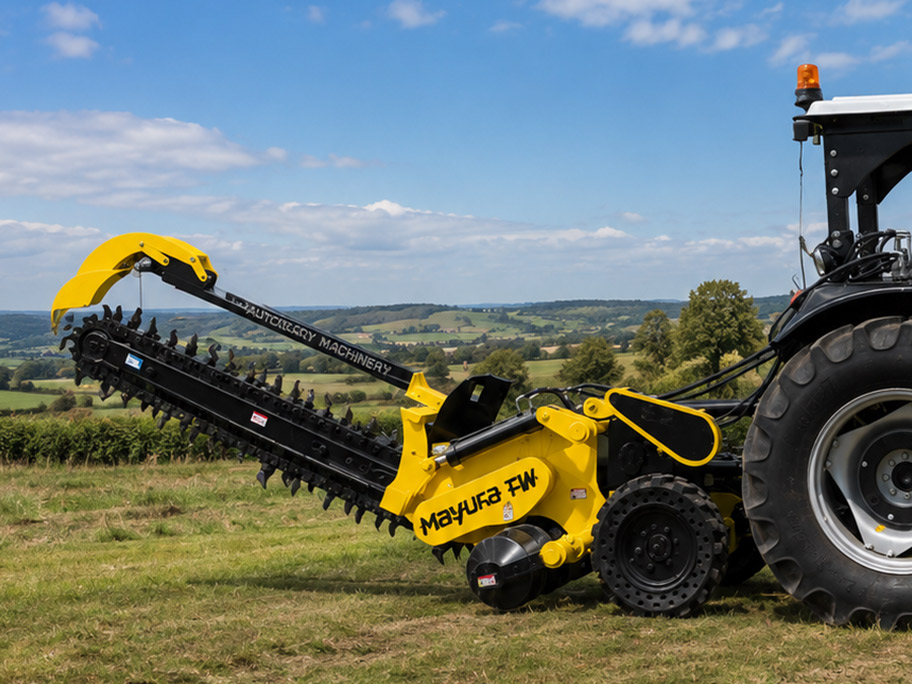

Chain Trencher
Creates controlled trenches up to 1800 mm deep for underground infrastructure.

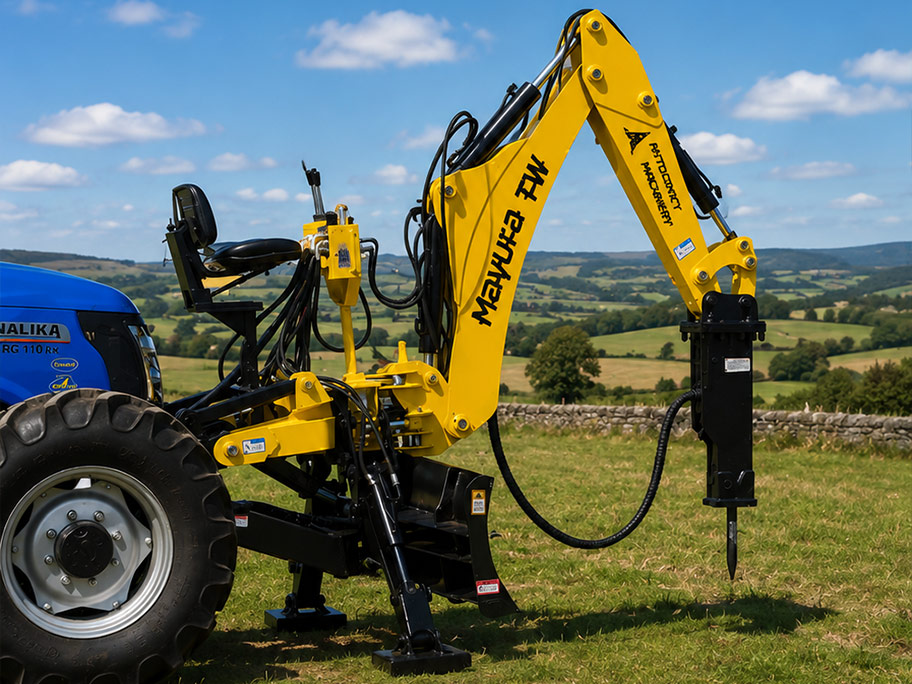

Hydraulic Breaker
Breaks through hard rock, concrete, and boulders encountered along the route.

Backhoe
Supports excavation, utility pits, obstacle removal, and route preparation.

4-Way Dozer
Handles grading and trench backfilling with a 2400 mm hydraulic blade.

Technical Specifications

Support Vehicle: Tractor

Trench Depth: Up to 1800 mm

Trench Width :          110-900 mm

Horsepower:   >90 HP

Transmission Type: PTO / Hydraulic

Trenching Speed: 300 m/hr; e.g., 1200 mm 280 mm: 300 m/hr soft, 200 m/hr hard; 1800 mm 180 mm: 150 m/hr soft, 90 m/hr hard

Fuel consumption rate: 5 - 6 liters

Lift Height:                2.0 - 3.5 m

Lifting Capacity:           1500 kg

Bucket Capacity: 0.12 - 0.15 cubic meters

Breaker Chisel Diameter: 45 mm

Operating Weight: 130 kg

Working Speed: 250 - 600 BPM

Blade Width:  2400 mm

Blade Height: 850 mm

Blade Thickness: 10 mm

Overall Length: 13000 mm

Overall Width: 2800 mm

Overall Height: 3000 mm

Gross Weight: 8100 kg
