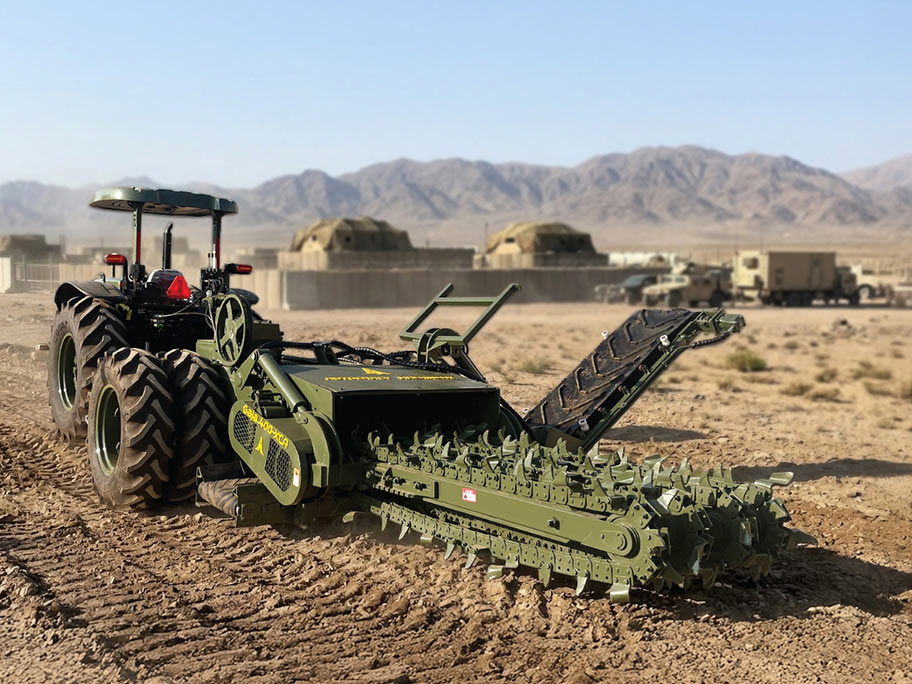

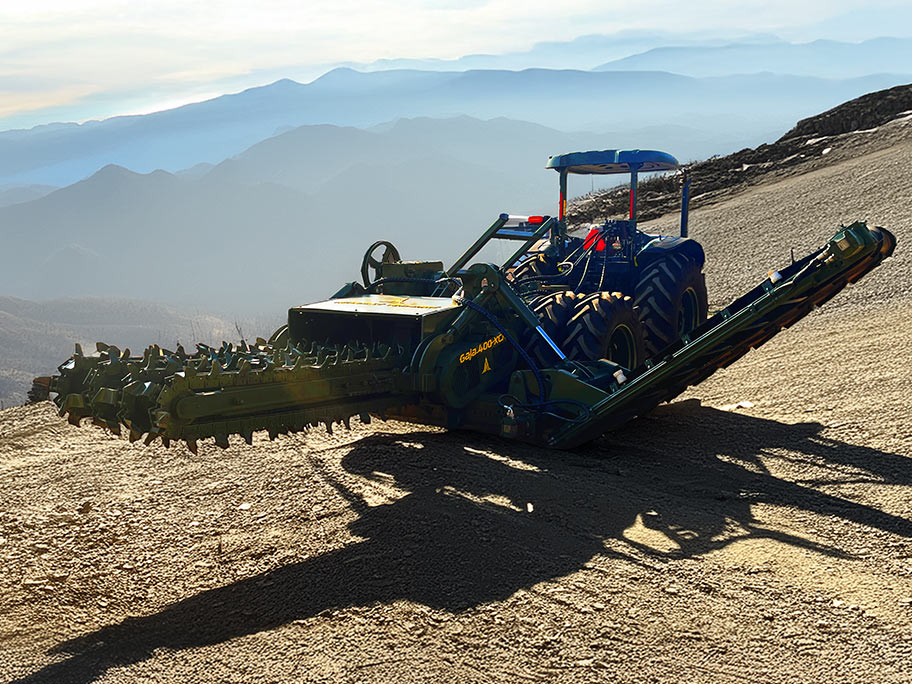

Heavy Duty Tractor Mounted Trencher | Gaja 400XC

Large infrastructure projects often require trenching across long routes with defined depth and width requirements. The Gaja 400XC is developed as a tractor-mounted trenching solution for such demanding applications, particularly across solar, wind, power transmission, defence and underground utility projects.

Designed for tractors above 100 HP, the machine uses PTO and hydraulic transmission and provides trenching depths of 1200-1500 mm. Its dual conveyor system helps transfer excavated soil away from the trench, supporting better material management during trenching operations.

Product Highlights

Deep & Wide Trenching
Designed for trench profiles up to 1500 mm deep and 1200 mm wide.

Heavy-Duty Tractor Compatibility
Works with tractors above 100 HP, making it suitable for large-scale field operations.

Dual Conveyor Soil Management
Fixed and tilting conveyors help move excavated material and manage soil placement along the trench route.

PTO & Hydraulic Drive
Combines tractor power with hydraulic operation for trenching across project sites.

Auxiliary Hydraulic System
Provides auxiliary hydraulic oil flow of more than 50 LPM.

Where It Can Be Used

The Gaja 400XC is suited for trenching requirements in:

• Solar power plants

• Wind farms

• Underground power transmission

• Defence infrastructure

• Communication networks

• Underground utility installation

• Large infrastructure projects

Machine Specifications

• Tractor: Above 100 HP

• Trench Depth: 1200-1500 mm

• Trench Width: Up to 1200 mm

• Trenching Speed: 60 m/hr in soft soil

• Hard Soil Speed: 20-30 m/hr

• Fuel Consumption: 9-10 L/hr

• Drive: PTO / Hydraulic

• Auxiliary Hydraulic Flow: >50 LPM

• Dimensions: 5300 3500 2900 mm

• Gross Weight: 3850 kg
